Description
Compact adapter capable of delivering 30W of PoE+ to the U6 LR, U6 Pro, and other PoE+ devices.

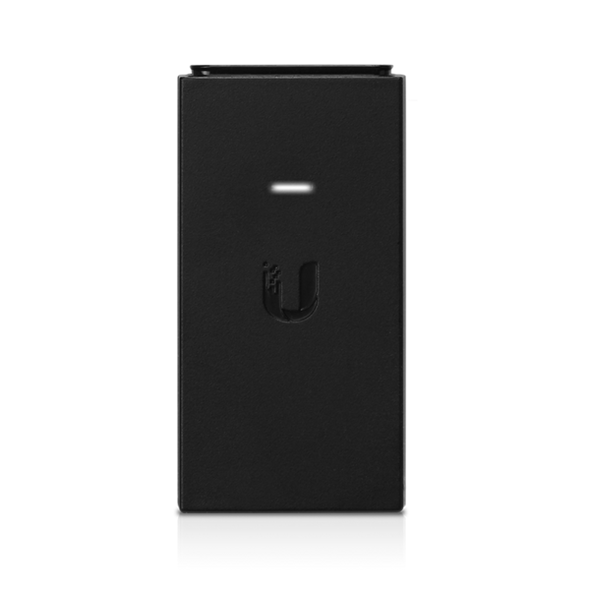

The PoE+ Injector (U PoE AT) is designed to power PoE+ devices. The U PoE AT delivers up to 30W of PoE+ that can be used to power the UniFi6 Long-Range (U6 LR), UniFi6 Pro (U6 Pro), and other devices that adhere to the PoE+ standard. It also provides enhanced protection against electrical surges.
Features:
- Delivers up to 30W of PoE+
- Compatible with the U6 LR, U6 Pro, and other PoE+ devices
- Surge and clamping protection
- AC cable with earth ground
| Specifications | |
|---|---|
| Model | U-POE-at |
| Dimensions | 93 x 62 x 35 mm (3.66 x 2.44 x 1.38") |
| Weight | 156 g (5.5 oz) |
| Output Voltage | 48VDC @ 0.65A |
| LAN Activity Indicator | No |
| Gigabit LAN Port | Yes |
| Remote Reset Capability | Yes |
| Reset Button | No |
| Rated Voltage | 100-240VAC @ 50/60Hz |
| Input Current | 0.75A@90VAC |
| Inrush Current | <100A Peak @230VAC, 26℃ |
| Efficiency | 87% |
| Output Ripple | 1% Max. |
| Switching Frequency | 70 kHz Max. |
| Line Regulation | ≤ 3% |
| Load Regulation | ≤ 5% |
| 2-Pair Powering | Pins 4, 5 (+) and Pins 7, 8 (-) |
| 4-Pair Powering | – |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Storage Temperature | -30 to 70°C (-22 to 158° F) |
| Operating Humidity | 35 to 90% Noncondensing |
| AC Connector | IEC-320 C6 |
| Data IN / PoE | RJ45 Shielded Socket |
| Surge Protection | Difference and Common Mode |
| Clamping Protection | 11V Data, 60V Power |
| Max. Surge Discharge | 1500A (8/20 μs) Power |
| Peak Pulse Current | 36A (10/1000 μs) Data |
| Shunt Capacitance | <5 pF data |
| Response Time | <1 ns |
| Certifications | CE, FCC, IC, UL |
