Description

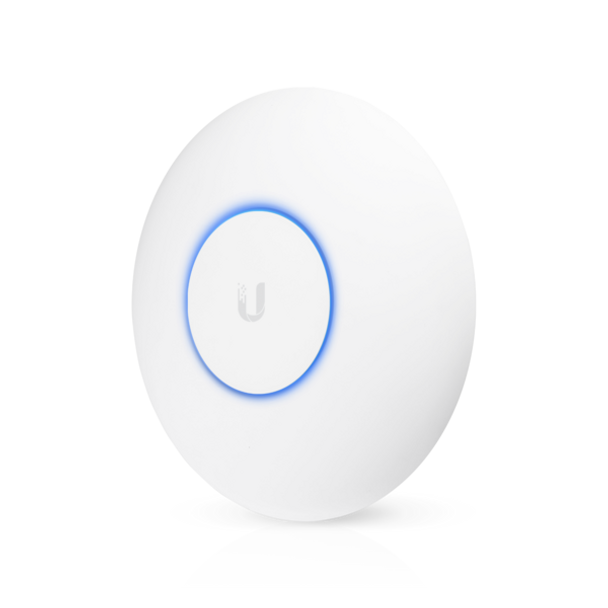

Expand your 10-Gigabit network with the UniFi XG Access Point, part of the Ubiquiti Networks UniFi Enterprise Wi-Fi System.
Features:
- 10Gigabit Ethernet Support
- 4x4 MU-MIMO Quad-Radio: (3) client, 1 Security
- Dual 5 GHz 802.11ac Wave 2 Radios
- 3.466 Gbps Combined Radio Rate in 5 GHz
- 800 Mbps Radio Rate in 2.4 GHz
- Dedicated Security Radio with Persistent Threat Management
- 1,500 Client Association Limit
- 802.3bt Power Injector Included
| UNIFI XG ACCESS POINT | |
|---|---|
| Dimensions | 228 x 228 x 50 mm (8.98 x 8.98 x 1.97") |
| Weight without Mount | 1300 g (2.87 lb) |
| Networking Interface | (1) 10/100/1000 RJ45 Ethernet Port (1) 1/10 Gbps ICM Ethernet Port |
| Buttons | Reset |
| Power Method | PoE 802.3bt |
| Power Supply | 50VDC, 1.2A Gigabit PoE Adapter |
| Max. Power Consumption | 31W |
| Supported Voltage Range | 44-57VDC |
| Operating Frequency | 2.4 GHz 5 GHz |
| Max. TX Power 2.4 GHz 5 GHz | 25 dBm 25 dBm |
| MIMO 2.4 GHz 5 GHz | 4 x 4 4 x 4 |
| Radio Rates 2.4 GHz 5 GHz | 800 Mbps 1.7 Gbps |
| Antenna | Integrated Internal Antenna |
| Antenna Gain 2.4 GHz 5 GHz | 6 dBi 8 dBi |
| Wi-Fi Standards | 802.11 a/b/g/n/ac/ac-wave2 |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| Mounting | Wall/Ceiling/Junction Box (Kits Included) |
| Operating Temperature | -10 to 60° C (14 to 140° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
