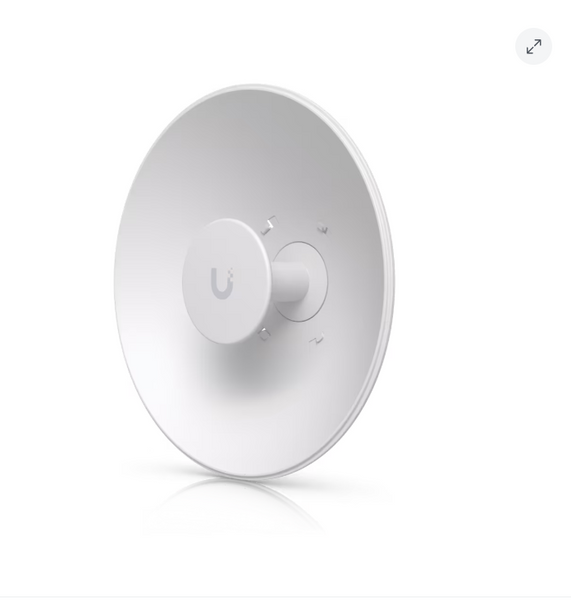

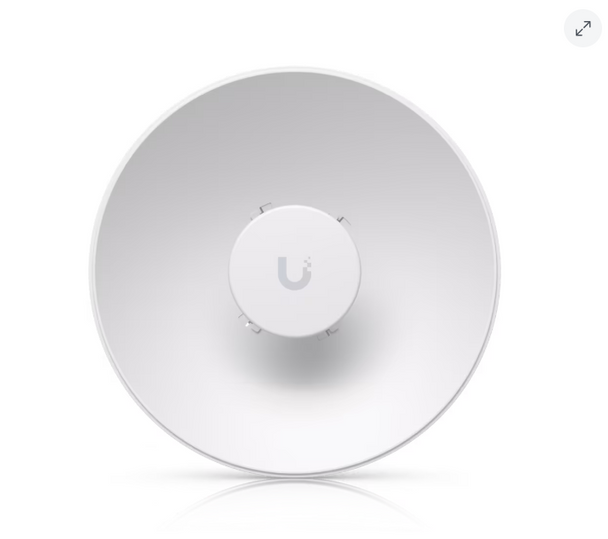

Ubiquiti UISP-DISH-MINI | UISP airMAX Mini Dish Antenna – 5 GHz Point-to-Point

The Ubiquiti UISP-DISH-MINI is a high-performance 5 GHz mini dish antenna built for point-to-point (PtP) wireless links in the UISP and airMAX ecosystem. With a compact 420 mm dish design and rugged build, it delivers high gain, enhanced signal clarity, and extended range for ISPs, enterprises, and outdoor connectivity projects.

Constructed from powder-coated galvanized steel, aluminum alloy, and UV-stabilized polycarbonate, the UISP-DISH-MINI is engineered for durability and long-term outdoor use. It withstands wind speeds up to 200 km/h (124 mph) and features IPX6 weatherproofing for reliable operation in harsh environments.

The included pole mount and alignment kit support flexible installations with ±20° elevation adjustment, making deployment fast and precise. Operating in the 5.15–6.875 GHz range, it provides narrow beamwidth (as low as 5.8°) with dual-linear polarization for improved signal quality and interference rejection.

Key Features

Frequency Range: 5.15 – 6.875 GHz

Beamwidth: 5.8–9° (3 dB) / 7.6–12.5° (6 dB)

Polarization: Dual-Linear with 15 dB cross-pol isolation

Max. VSWR: 2:1

Electrical Downtilt: 0°

Dish Size: Ø420 x 140 mm (Ø25.6 x 7.9")

Weight: 1.95 kg (dish), 1 kg (mount), 0.45 kg (waveguide)

Materials: Powder-coated galvanized steel, aluminum alloy, UV-stabilized polycarbonate

Wind Survivability: Up to 200 km/h (124 mph)

Wind Loading: 348 N at 200 km/h (78 lbf at 124 mph)

Mounting: Pole mount (Ø32–76 mm), alignment kit included

Weatherproofing: IPX6 rated

Compliance: NDAA compliant
