Ubiquiti

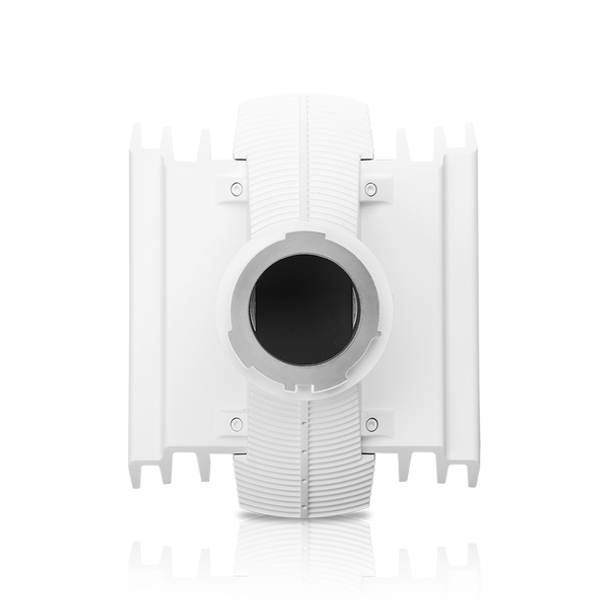

Ubiquiti UISP Beamwidth Horn Antenna Horn-5-90

(No reviews yet) Write a Review
SKU:
Horn-5-90
MPN:
Horn-5-90
  • Ubiquiti UISP Beamwidth Horn Antenna Horn-5-90
  • Ubiquiti UISP Beamwidth Horn Antenna Horn-5-90
  • Ubiquiti UISP Beamwidth Horn Antenna Horn-5-90
$79.00

Description

5GHz Beamwidth Horn Antenna

With a range of different beam widths, the isolation antennas are interchangeable and feature high-performance beam patterns ideal for a range of deployment needs. Used with the airFiber® LTU and airMAX® radios, these antennas deliver superb co‐location performance without sacrificing gain.

Horn-5-90
Dimensions 152.1 x 186.8 x 113.2 mm (5.99 x 7.35 x 4.46")
Weight 920 g (32.45 oz)
Supported Frequency Range 5.15 -5.85 GHz
Gain 13 dBi
HPOL Beamwidth 90°
VPOL Beamwidth 90°
Elevation Beamwidth 45°
Maximum VSWR 2:1
Wind Survivability 200 km/h (125 mph)
Wind Loading 46 N @ 200 km/h (10.3 lbf @ 125 mph)
Polarization Dual-Linear
Cross-Pol Isolation 17 dB
