Description

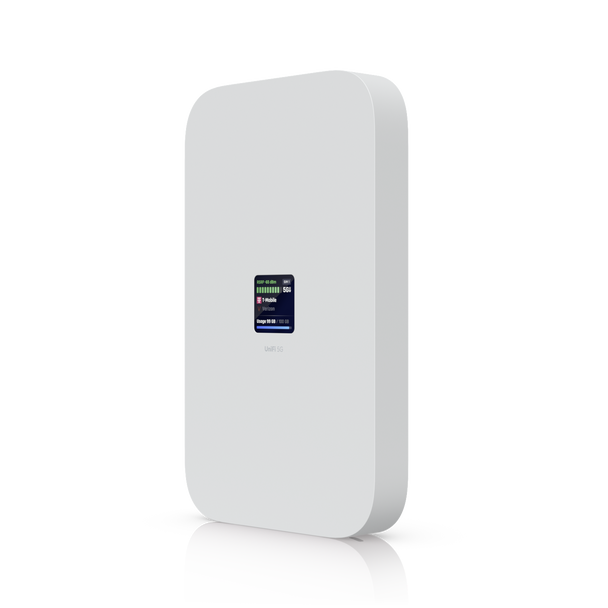

A high-performance 5G (3.4 Gbps) modem for any UniFi deployment. Instantly adopt through any UniFi PoE port, it delivers automatic setup, dual SIM/eSIM, and seamless failover. Certified with AT&T, T-Mobile, and Verizon*.
Dimensions
180 x 109 x 33.8 mm (7.1 x 4.3 x 1.3")
Networking Interface
(1) 2.5 GbE RJ45 port 5G NR and LTE radio
SIM
(1) Nano SIM (1) Nano-SIM or eSIM
PoE Interface
(1) PoE input
Mounting
Desktop stand, wall, window mount (Included)
Tamper Resistance
IK04
Weight
Device: 410 g (14.5 oz) Stand: 215 g (7.6 oz) Wall mount: 7.6 g (0.3 oz) Window mount: 20 g (0.7 oz)
Enclosure Material
Polycarbonate, aluminum alloy
Mount Material
Polycarbonate, silicone rubber
Management
Ethernet
5G NR
Category
5G NR
Frequency Bands
n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79
Max. TX Power
HPUE power class 2: 26 dBm
4G LTE
Frequency Bands
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
Max. TX Power
HPUE power class 2: 25 dBm
3G UMTS
Frequency Bands
B1, B2, B4, B5, B8, B19
Peak Data Speed
5G NSA
Downlink 3.4 Gbps Uplink 560 Mbps
5G SA
Downlink 1.8 Gbps Uplink 650 Mbps
4G LTE
Downlink 1.6 Gbps Uplink 210 Mbps
Antennas
Type
(4) Embedded cellular antennas
Max. Power Consumption
14.5W
Power Method
PoE
Display
1.3" touchscreen
Buttons
(1) Factory-reset
Ambient Operating Temperature
0 to 40 °C (32 to 104 °F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
✓
Certifications
FCC, IC, CE, PTCRB, GCF, AT&T, T-Mobile, Verizon
Application Requirements
UniFi Network
Version 10.0.162 and later
