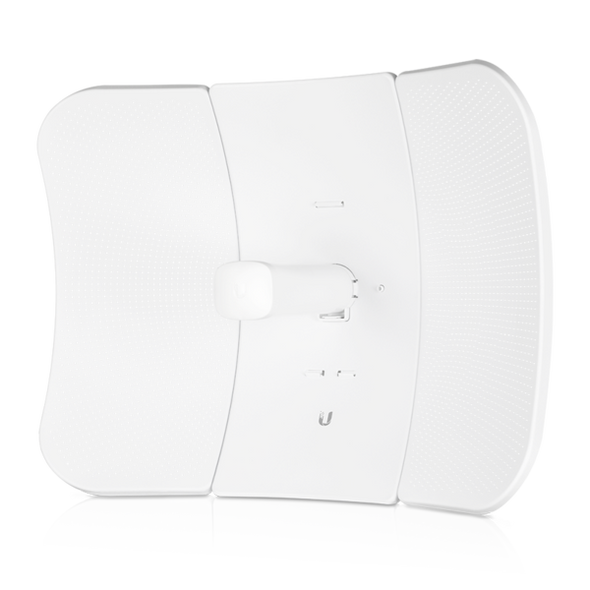

Ubiquiti Networks LBE-M5-23-US 5GHz LiteBeam M5 23dBi 1x1 US

KEY FEATURES:

• 5725 – 5850 MHz
• 23 dBi
• (1) 10/100 Ethernet Port
• 24V, 0.2A Passive PoE

US Version

The LBE-M5-23 is the latest evolution of a lightweight and compact, outdoor wireless broadband CPE (Customer Premises Equipment) from Ubiquiti Networks. The LBE-M5-23 was designed to be an affordable cost/performance solution for long-distance, wireless broadband bridging. It operates in the worldwide, license-free 5 GHz frequency range and features high performance of up to 100+ Mbps in real outdoor throughput and an incredible range of up to 30+ km.

The LBE-M5-23 combines proprietary hardware and software technologies to deliver its breakthrough combination of throughput and range with cost-effective value. Its InnerFeed technology integrates the entire radio system into the feedhorn of the antenna, and our revolutionary airMAX TDMA protocol enhances network performance and scalability.

The LBE-M5-23 also features a unique ball joint mounting system that provides 3-axis adjustment flexibility for versatile mounting options. The mounting system, coupled with the built-in bubble level, enables quick and easy alignment.

• Worldwide: 5150 – 5875 MHz
• USA: 5725 – 5850 MHz
• MIPS 74K
• 23 dBi
• Antenna Size: 362 x 267 mm
• 24V, 0.2A PoE Adapter (Included)
• Pole Mounting Kit (Included)
• (1) 10/100 Ethernet Port
