Description

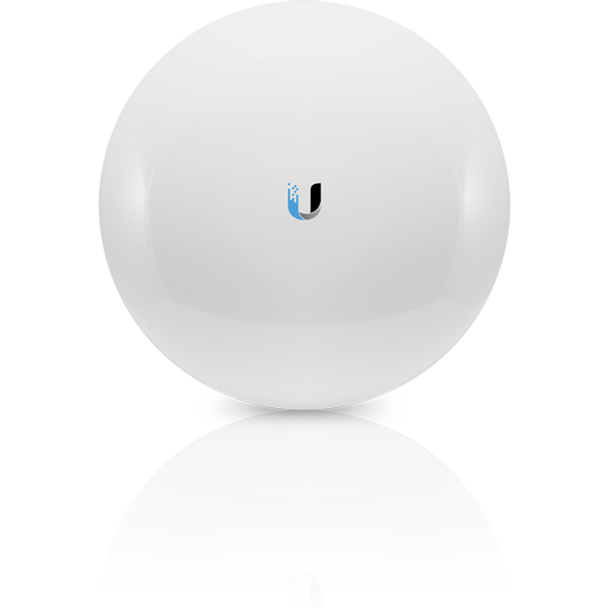

High-performance NanoBeam design at 2 GHz with updated proprietary airMAX ac chipset and dedicated management Wi-Fi for easy UISP mobile app support and fast setup. Excellent solution for a simple PtP bridge or use as a PtMP station (CPE).
Features:
- New antenna
- Improved design
- Management WiFi Radio/UISP mobile app
UISP mobile app for Android and IOS
| NBE-2AC-13 | |
|---|---|
| Dimensions (Mount Included) | 189 x 189 x 125 mm (7.44 x 7.44 x 4.92") |
| Weight (Mount Included) | 530 g (1.17 lb) |
| Gain | 13 dBi |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Enclosure | Outdoor UV Stabilized Plastic |
| Max. Power Consumption | 7.5W |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Wind Loading | 45.4 N @ 200 km/h (10.2 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Certifications | CE, FCC, IC |
| Mounting | Pole-Mount (Kit Included) Wall-Mount (Not Included) Window-Mount (Not Included) |
| ESD/EMP Protection | ± 24kV Contact/Air |
| Operating Temperature | -40 to 80° C (-40 to 176° F) |
| Operating Humidity | 5 to 95% Noncondensing |
