Ubiquiti

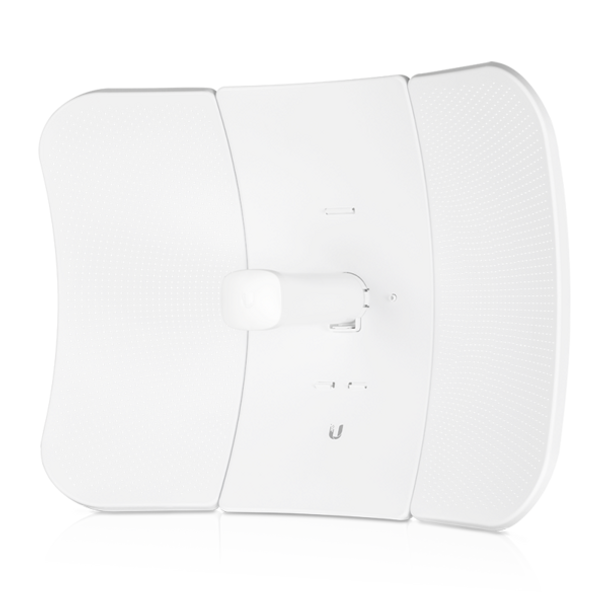

Ubiquiti Litebeam 5AC Long range LBE-5AC-LR-US
(No reviews yet)
Write a Review
- SKU:
- LBE-5AC-LR-US
- MPN:
- LBE-5AC-LR-US
Description
The LiteBeam 5AC Long Range is an affordable airMAX AC CPE designed for long-distance links. Reach new customers and still maintain your great ROI.
Features:
- Improved Radio Design
- Improved Mounting
- Improved Surge Protection
- Management WiFi Radio/UISP mobile app
- AirOS 8
| LBE-5AC-LR | |
|---|---|
| Dimensions | 512 x 385.75 x 258.3 mm (20.18 x 15.19 x 10.17") |
| Weight | Without Mount: 1.360 kg (2.998 lb), With Mount 1.735 kg (3.825 lb) |
| Power Supply | 24V, 0.3A Gigabit PoE Adapter (Included) |
| Max. Power Consumption | 7W |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Supported Voltage Range | 24V ± 10% |
| Gain | 26 dBi |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Processor Specs | MIPS 74Kc |
| Memory | 64 MB DDR2 |
| LEDs | Power, Ethernet |
| Channel Sizes | PtP Mode: 10/20/30/40/50/60/80 MHz PtMP Mode: 10/20/30/40 MHz |
| Enclosure Characteristics | Reflector (Aluminium) / Plastic: PC |
| Mounting | Pole-Mounting Kit (Included) |
| Wind Loading | 550 N @ 200 km/h (123.6 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| ESD/EMP Protection | ± 24 kV Contact / Air |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
