Description
Powerful and affordable 5 GHz sector access point. GPS synchronized units provide up to 450+ Mbps data throughput.

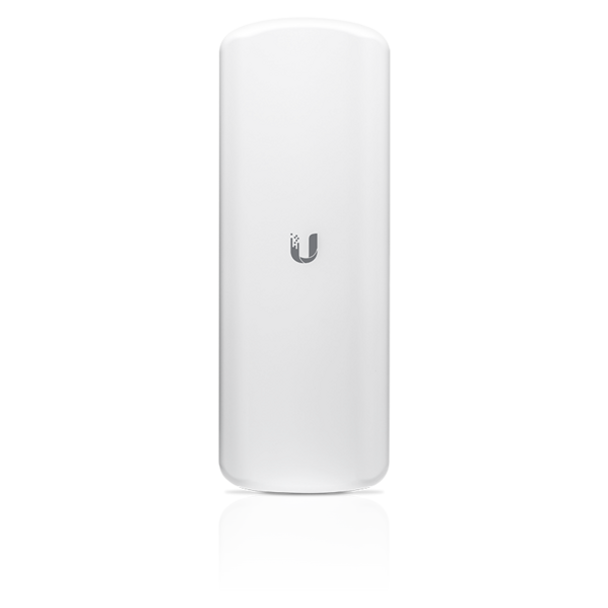

Introducing the airMAX® LiteAP™ AC, the latest high-performance access point with disruptive pricing from Ubiquiti Networks. Featuring an ultra-lightweight form factor, the LiteAP AC was designed to be an affordable cost/performance solution for long-distance, wireless broadband bridging. Each of these models operates in the worldwide, license-free 5 GHz frequency range with high-performance speeds.
Features:
- GPS Sync support
- Lightweight, low-cost solution
- High-performance 90 degree antenna
| LITE AP GPS | |
|---|---|
| Dimensions (Mount Not Included) | 360.98 x 124.57 x 71.28 mm (14.21 x 4.90 x 2.81") |
| Weight (Mount Not Included) | 752 g (1.66 lb) |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Antenna Gain | 17 dBi |
| Max. Power Consumption | 7.1W |
| Max. TX Power | 25 dBm |
| Power Supply | 24V, 0.3A Gigabit PoE Adapter (Included) |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Supported Voltage Range | 20 - 26VDC |
| ESD/EMP Protection | ± 24kV Contact / Air |
| Shock and Vibrations | ETSI300-019-1.4 |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 77 N @ 200 km/h (17.3 lbf @ 125 mph) |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| OPERATING FREQUENCY (MHZ) | |
| US/CA U-NII-1 U-NII-2A U-NII-2C U-NII-3 | 5150 - 5250 5250 - 5350 5470 - 5725 5725 - 5850 |
| Worldwide | 5150 - 5875 |
| MANAGEMENT RADIO (MHZ) | |
| US/CA | 2412 - 2462 |
| Worldwide | 2412 - 2472 |
