Description

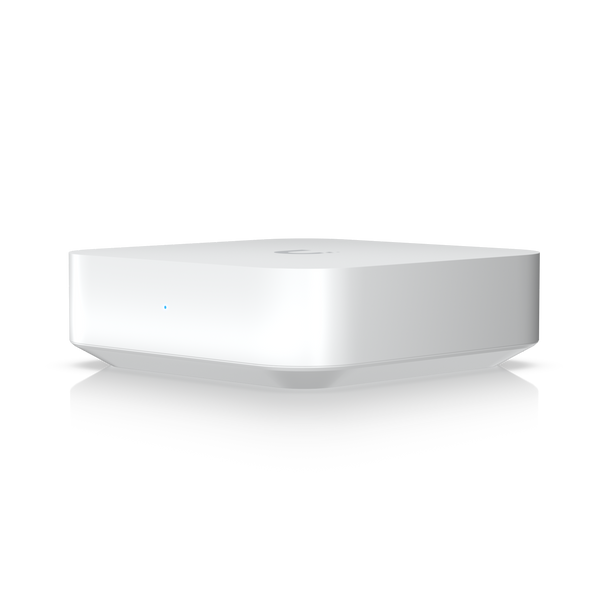

A compact and powerful UniFi gateway with a full suite of advanced routing and security features.
Up to 10x routing performance increase over USG (tested with IPS/IDS, QoS, and Smart Queues)
Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server
(1) GbE WAN port
(1) GbE LAN port
Compact footprint
USB-C powered (adapter included)
Managed with UniFi Network 8.0.7 and later
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 98 x 98 x 30 mm (3.9 x 3.9 x 1.2") |
| Weight | 320 g (11.3 oz) |
| Enclosure materials | Polycarbonate |
| Hardware | |
| Processor | Dual-core ARM® Cortex®-A53 at 1 GHz |
| Memory information | 1 GB DDR3L |
| Management interface | Ethernet Bluetooth 5.1 |
| Networking interface | (1) GbE RJ45 WAN port (1) GbE RJ45 LAN port |
| Power method | USB type C (5V/3A) |
| Supported voltage range | 100–240V |
| Max. power consumption | 3.83W |
| Operating temperature | -10 to 40° C (14 to 104° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Gateway Features | |
| Performance | WiFi QoS with UniFi APs Application, domain, and country-based QoS Application and device type identification Additional internet failover with LTE Backup Internet quality and outage reporting |
| Next-generation security | Application-aware firewall rules Signature-based IPS/IDS threat detection Content, country, domain, and ad filtering VLAN/subnet-based traffic segmentation Full stateful firewall |
| Advanced networking | License-free SD-WAN* WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN One-click Teleport* and Identity Enterprise VPN** Policy-based WAN and VPN routing DHCP relay Customizable DHCP server IPv6 ISP support *When paired with a Cloud Key or Official UniFi Hosting. **When paired with a Cloud Key. |
| Application Requirements | |
| UniFi Network | Version 8.0.7 and later |
