Ruckus

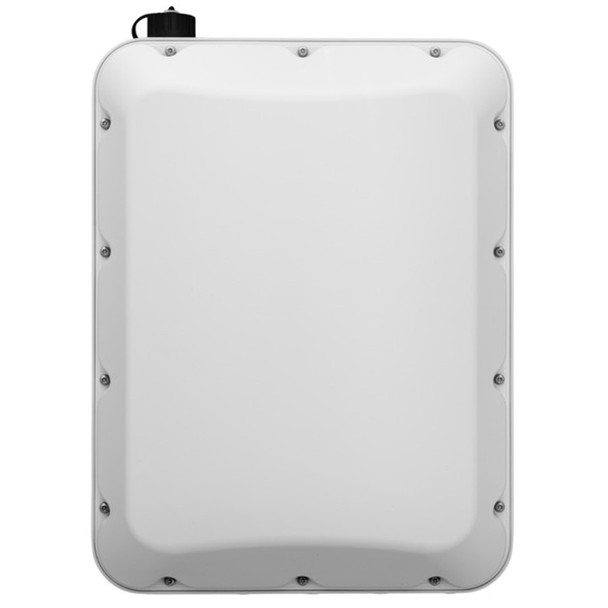

RUCKUS 9U1-T750-US51 (T750 SE) Outdoor Wi-Fi 6 Access Point | 4×4:4 Dual-Band, 120° Sector Antenna, Multi-Gig + SFP/Fiber Backhaul
- SKU:
- 9U1-T750-US51
- MPN:
- 9U1-T750-US51
Description
Dual-Band Wi-Fi 6 (802.11ax) – Delivers ultra-high performance with 8 spatial streams (4×4:4 on both 2.4 GHz & 5 GHz), leveraging OFDMA and MU-MIMO for efficient coverage. RUCKUS NetworksWeb Resources
High-Density Capacity – Supports up to 1,024 concurrent users, making it suitable for dense public spaces like stadiums, plazas, and smart city deployments.
Multi-Gigabit & Fiber Backhaul – Offers a 2.5 GbE port, a 1 GbE port, and an SFP/SFP+ fiber interface to eliminate wired bottlenecks.
120° Sector Antenna – Comes with an integrated sector antenna and an option for external expansion to enhance directional coverage.
Rugged Outdoor Design – Built with IP-67 weatherproofing, operational from –40 °C to +65 °C, and includes GPS for location-based services.
IoT Ready + Power Passthrough – Includes onboard BLE & Zigbee radios, a USB expansion, and a PoE output to power downstream devices like IP cameras.
Smart RF Technologies – Equipped with BeamFlex+ adaptive antennas and ChannelFly AI-driven channel optimization to ensure optimal coverage and interference mitigation.
Flexible Management & Security – Compatible with RUCKUS Cloud, SmartZone, virtual or physical controllers; includes WPA3 and Dynamic PSK for robust security.
The RUCKUS 9U1-T750-US51 (T750 SE) is an enterprise-grade, outdoor Wi-Fi 6 AP engineered for ultra-dense, high-demand outdoor environments. Built for venues like plazas, airports, and stadiums, it delivers exceptional performance across both 2.4 GHz and 5 GHz bands with 8 spatial streams and advanced OFDMA/MU-MIMO capabilities. This ensures seamless support for up to 1,024 simultaneous users.
The included 120° sector antenna provides wide coverage, and the option to attach external antennas lends deployment flexibility. Equipped with multi-gigabit backhaul via 2.5 GbE, 1 GbE, and SFP/SFP+ fiber, it ensures the wired network keeps pace with Wi-Fi performance.
With its IP-67 housing, GPS support, and PoE passthrough, the T750 SE is rugged, location-aware, and capable of powering additional edge devices. IoT radios (BLE & Zigbee) and a USB port allow for converged network deployment and future expandability.
Advanced signal management through BeamFlex+ and ChannelFly ensures resilience in RF-dense conditions. Whether managed via cloud, SmartZone, or controllers, and protected with WPA3 and Dynamic PSK, the T750 SE is built for both scale and security.
RUCKUS 9U1-T750-US51 (T750 SE) outdoor Wi-Fi 6 AP with 4×4:4 dual-band, 120° sector antenna, 1,024-user capacity, multi-gig & fiber backhaul, IoT & PoE-out, IP-67.
