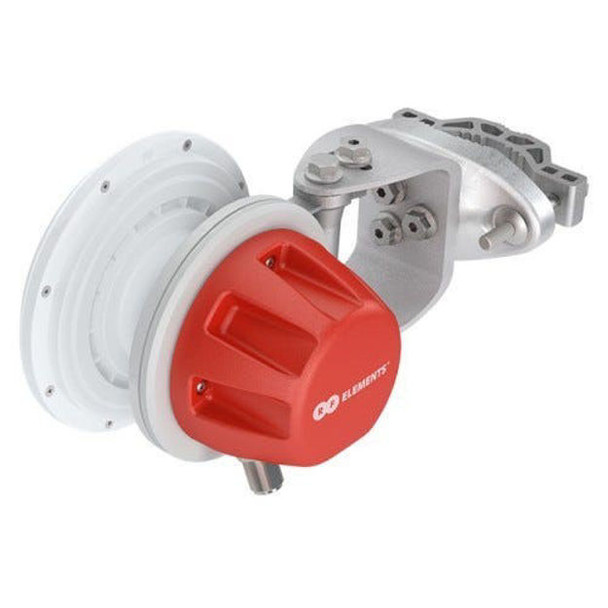

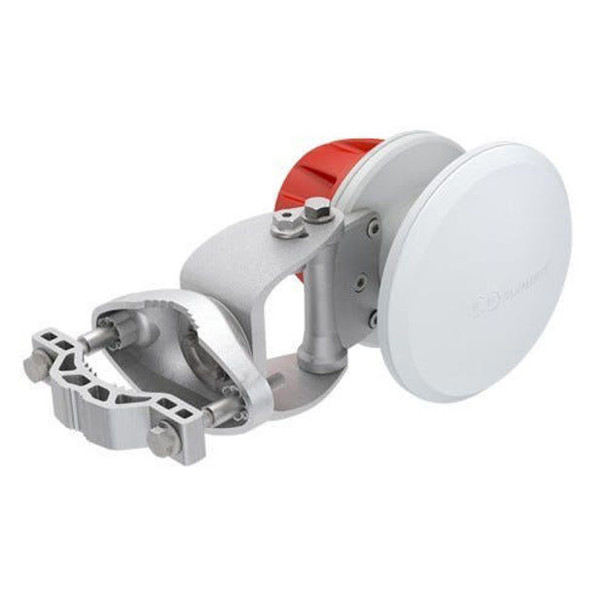

RF ELEMENTS HG3-CC-S90 5GHZ SYMMETRICAL HORN CARRIER CLASS 90°
- SKU:
- HG3-CC-S90
- MPN:
- HG3-CC-S90
Description
Symmetrical Horn Carrier Class Antennas feature N-type female connectors, used with wide range of Radios. For example, Mimosa, Cambium Network PMP450, LigoWav, and many others. Users of UBNT Rocket M5 Titanium, MikroTik connectorized radios (NetBox, BaseBox and NetMetal) can also utilize coaxial ports on Carrier Class Symmetrical Horn Antennas.
Symmetrical Horn CC Gen2 has solid aluminum body, built to last and resist any weather conditions. We use only the best materials: die cast, stamped, and extruded aluminum; high quality polypropylene, UV resistant polycarbonate; and stainless steel hardware.
Frequency Range 5180 - 6400 MHz
Gain 9.6 dBi
Azimuth Beam Width -6 dB H 90° / V 90°
Elevation Beam Width -6 dB H 90° / V 90°
Mechanical Tilt ± 25°
Pole Mounting Diameter 30 - 90 mm
