Description
The RB260GSP is a small SOHO switch, which features power output on it’s ethernet ports. Ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit (passive PoE over datalines only). The RB260GSP has five Gigabit Ethernet ports and one SFP cage, switching is done by an Atheros Switch Chip. The device is running an operating system designed specifically for MikroTik Switch products - SwOS.
Specifications
| Details | |
|---|---|
| Product code | CSS106-1G-4P-1S |
| Dimensions | 113x139x28mm |
| Operating System | MikroTik SwOS |
| Storage size | 128 KB |
| Storage type | FLASH |
| Tested ambient temperature | -20°C to 70°C |
| MTBF | Approximately 100'000 hours at 25C |
| Suggested price | $55.95 |
Powering
| Details | |
|---|---|
| PoE in | Passive PoE |
| PoE in input Voltage | 11-30 V |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 11-30 V |
| Max power consumption | 53 W |
| Max power consumption without attachments | 5 W |
| FAN count | Passive |
PoE-out
| Details | |
|---|---|
| PoE-out ports | Ether2-Ether5 |
| PoE out | Passive PoE |
| Max out per port output (input < 30 V) | 1 A |
| Max total out (A) | 2 A |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 5 |
Fiber
| Details | |
|---|---|
| SFP DDMI | Yes |
| SFP ports | 1 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
Related Products
On Sale

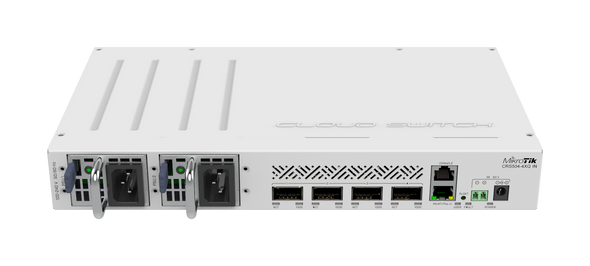

Mikrotik CRS504-4XQ-IN Switch
