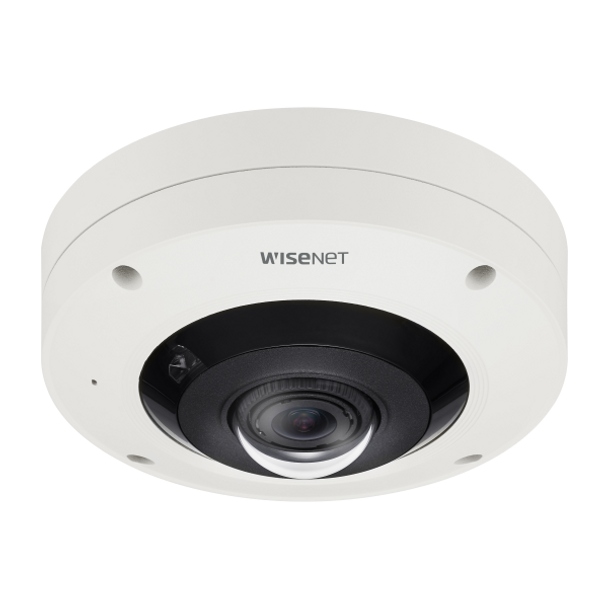

Hanwha XNF-9010RV 12MP Outdoor 360° IR Fisheye Camera – AI Analytics, WDR, IP66/IK10

Ultra High-Resolution Imaging: 12MP (3008 × 3008) @ 30fps for crystal-clear fisheye coverage.

360° Situational Awareness: 1.08mm stereographic lens with enhanced edge resolution and 187° × 187° FoV.

Flexible Viewing: Supports fisheye, single panorama, double panorama, quad view, and multiple dewarped channels.

Smart Analytics: Loitering, directional detection, fog detection, motion, object entry/exit, tampering, sound classification, heatmap, people counting, and queue management.

Low-Light Clarity: Wise IR LEDs up to 10m (33 ft) with multi-zone IR management.

Advanced Compression: Triple codec (H.265/H.264/MJPEG) with WiseStream II for bandwidth and storage savings.

Extreme WDR: 120dB @ 30fps ensures clear images in challenging lighting.

Rugged Build: IP66, IK10, NEMA4X ratings with a hard-coated dome cover for durability.

Easy Installation: Direct connect shielded RJ45 (no pigtail), USB, and analog video out.

Edge Storage: Dual SD card slots for redundancy.

Power Options: PoE or 12V DC.

Compliance: TAA-compliant model available (XNF-9010RV/KAP).

The Hanwha XNF-9010RV is a powerful 12MP outdoor fisheye camera from the Wisenet X series, offering complete 360° situational awareness in a single device. Equipped with a 1.08mm stereographic lens, it provides exceptional clarity with enhanced edge resolution, making it ideal for wide-area surveillance in airports, stadiums, campuses, and city surveillance.

This camera supports multiple view modes—fisheye, panorama, and quad views—along with onboard dewarping and digital PTZ for flexible monitoring. Advanced AI-driven analytics such as heatmaps, queue management, people counting, loitering detection, fog detection, and sound classification enable both security and business intelligence applications.

The XNF-9010RV is built for demanding outdoor environments, featuring IP66, IK10, and NEMA4X durability, a hard-coated dome cover, and Wise IR multi-zone illumination up to 10m. Installation is simplified with a direct RJ45 connection (no pigtail), USB setup, and analog video output.

Supporting dual SD cards, PoE/12V DC power, and WiseStream II compression, this camera ensures high performance, efficiency, and resilience. For government and secure deployments, a TAA-compliant version (XNF-9010RV/KAP) is available.

Technical Specifications (Quick View)

Resolution: 12MP (3008 × 3008) @ 30fps

Lens: 1.08mm stereographic fisheye, 187° × 187° FoV

View Modes: Fisheye, panorama (single/double), quad view, multiple virtual channels

WDR: Extreme 120dB @ 30fps

Compression: H.265, H.264, MJPEG; WiseStream II

Analytics: Loitering, directional, fog detection, object entry/exit, tampering, motion, sound classification, people counting, queue management, heatmap

IR Range: 10m (33 ft), Wise IR multi-zone management

Storage: Dual SD/SDHC/SDXC slots

Power: PoE or 12V DC

Durability: IP66, IK10, NEMA4X; hard-coated dome cover

Installation: Direct RJ45 (no pigtail), USB, analog video output

Compliance: TAA-compliant model available (XNF-9010RV/KAP)

What’s in the Box

1 × Hanwha XNF-9010RV Outdoor Fisheye Camera

Mounting Hardware Kit

Quick Installation Guide
