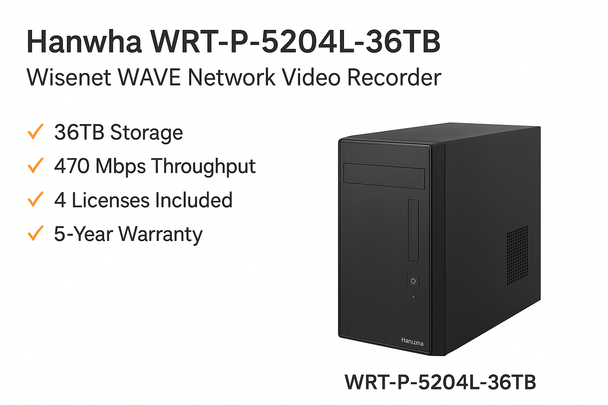

Hanwha WRT-P-5204L-36TB Wisenet WAVE Network Video Recorder – 36TB Storage, 470 Mbps Throughput, 4 Licenses Included

Enterprise-Grade NVR – Dual-purpose Wisenet WAVE server and client in a compact mini-tower design.

Massive Storage Capacity – Supports up to 36TB raw storage with 3 × 3.5" SATA HDD bays.

High Throughput Recording – Handles up to 470 Mbps recording bandwidth for large surveillance deployments.

Preloaded VMS – Comes with Wisenet WAVE Video Management System preinstalled for quick setup.

Licenses Included – Includes 4 Wisenet WAVE Professional licenses to start right out of the box.

Powerful Hardware – Equipped with Intel Core i5 14th Gen CPU, 16GB DDR4 RAM, 256GB SSD OS drive.

Robust Connectivity – Dual 1GbE ports, multiple USB 3.2/Type-C ports, and dual DisplayPort video outputs.

Durable Warranty – Covered by 5-Year On-Site, Next Business Day, Keep Your Hard Drive Warranty.

Certified Performance – UL, cUL, CB, FCC, and 80 Plus Gold certified for reliability.

The Hanwha WRT-P-5204L-36TB Wisenet WAVE NVR is a high-performance recording solution built for professional surveillance environments. Designed as a dual-purpose server and client, it comes preloaded with Wisenet WAVE VMS and includes four professional licenses, allowing for fast, hassle-free deployment.

With support for up to 470 Mbps of recording throughput and 36TB of raw storage, this NVR is ideal for large-scale security installations. Powered by an Intel Core i5 14th Gen processor with 16GB DDR4 memory and a 256GB SSD OS drive, it ensures smooth operation and long-term reliability.

Connectivity is robust, with dual 1GbE RJ45 ports, multiple USB 3.2/Type-C interfaces, and dual DisplayPort outputs for flexible system management. Built in a compact mini-tower chassis, the WRT-P-5204L-36TB combines power and efficiency in a professional form factor.

Backed by a 5-Year, Next Business Day On-Site Warranty with Keep Your Hard Drive support, it delivers enterprise-level peace of mind.

Technical Specifications (Quick View)

Recording Bandwidth: Up to 470 Mbps

Storage: 36TB raw (3 × 3.5" SATA HDD)

OS Drive: 256GB M.2 SSD

Processor: Intel Core i5 14th Gen

Memory: 16GB DDR4

Network: 2 × 1GbE RJ45

Video Outputs: 2 × DP (with 1 × DP-to-HDMI adapter)

USB Ports: Multiple USB 3.2 Gen1/Gen2/Type-C + USB 2.0

Dimensions: 14.68" × 6.81" × 16.54" (372.9 × 173 × 420 mm)

Weight: 24 lbs (10.68 kg without HDDs)

• Power Supply: 500W 80 Plus Platinum, 100–240V AC

• Operating Temp: 50°F to 95°F (10°C to 35°C)

What’s in the Box

1 × Hanwha WRT-P-5204L-36TB NVR

4 × Wisenet WAVE Professional Licenses

USB Keyboard & Mouse

Power Cable

Quick Installation Guide
