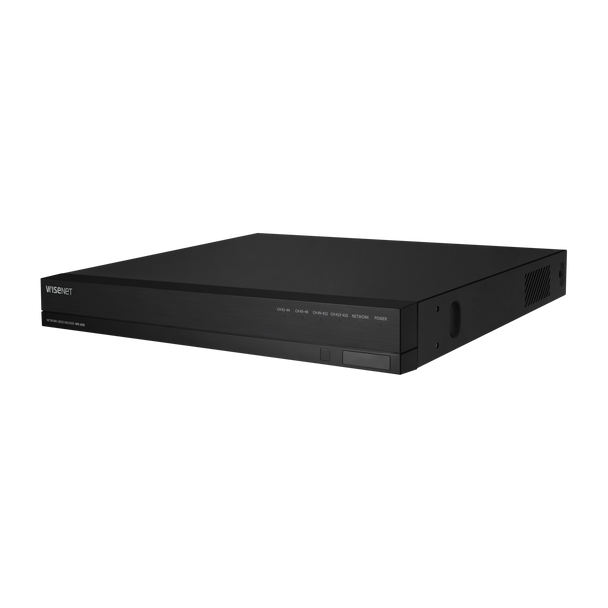

Hanwha SPE-1630 16-Channel Network Video Encoder – 5MP Support, H.265, ONVIF

Analog-to-IP Migration: Convert up to 16 analog cameras to IP for modern VMS integration.

High-Resolution Support: Handles up to 5MP analog cameras (5MP@12fps, 4MP@15fps, 2MP@30fps).

Wide Protocol Compatibility: Supports AHD, CVI, TVI, and CVBS (auto-detection).

Advanced Compression: H.265/H.264/MJPEG with enhanced video encoding for lower bandwidth and storage.

PTZ Control: Built-in RS-485 interface & coaxial control for PTZ camera operation.

Flexible Streaming: Up to 3 profiles per channel for tailored bandwidth use.

Easy Monitoring: HDMI video output for live viewing of all 16 channels.

I/O Support: Integrated alarm and audio I/O for advanced system control.

Enterprise Ready: ONVIF Profile S, NDAA/FCC compliant, with TAA model available (SPE-1630/KUS).

Rack-Mountable: Includes rack mount brackets for fast deployment.

The Hanwha SPE-1630 is a professional 16-channel network video encoder designed to bridge legacy analog surveillance systems with modern IP-based video management systems. It allows businesses to maximize existing investments in analog cameras and cabling while upgrading to higher resolution and more efficient video streaming.

Supporting up to 5MP analog video input, the SPE-1630 ensures excellent image quality. It’s compatible with multiple protocols including AHD, CVI, TVI, and CVBS, with automatic detection for hassle-free setup. Compression technologies like H.265/H.264/MJPEG and multiple streaming profiles per channel reduce storage costs and network load.

With features like RS-485 & coaxial PTZ control, HDMI video out for real-time monitoring, and alarm/audio I/O, this encoder offers flexibility and control. Built for reliability, it is NDAA and FCC compliant, with a TAA-compliant version (SPE-1630/KUS) available for government projects.

Ideal for enterprises, government, and institutions transitioning from analog to IP, the SPE-1630 provides an efficient and cost-effective upgrade path.

Technical Specifications (Quick View)

Channels: 16 analog to IP

Resolution Support: Up to 5MP@12fps, 4MP@15fps, 2MP@30fps

Protocols: AHD, CVI, TVI, CVBS (auto-detect)

Compression: H.265, H.264, MJPEG (multi-streaming)

PTZ Control: RS-485, coaxial control

Streaming: Up to 3 profiles per channel

Video Out: HDMI (16 camera live view)

I/O: Alarm & Audio

Networking: 1 × RJ-45 (10/100/1000 Base-T)

Compliance: ONVIF Profile S, NDAA, FCC; TAA model available (SPE-1630/KUS)

Mounting: Rack mount brackets included

What’s in the Box

1 × Hanwha SPE-1630 Encoder

Rack Mount Brackets

Power Supply

Quick Installation Guide
