Description
Product Overview

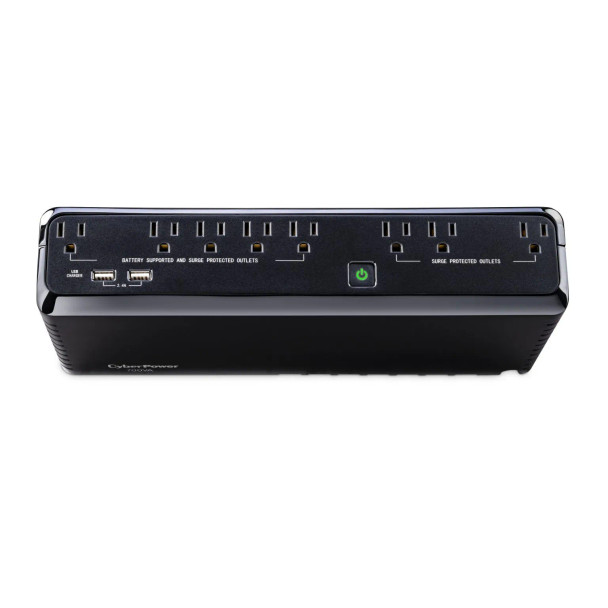

The CyberPower SL700U uninterruptible power supply (UPS) system provides surge protection for lightning-induced surges and other power events that can damage electronic equipment. This unit delivers enough battery backup to connected devices during a utility power failure, so you can perform a graceful shutdown to protect against the loss of data and damage to valuable electronics including computers, gaming consoles, and home networking equipment.
The SL700U has two Type A USB charging ports with 2.4A shared total output which gives you a faster charging time and can be used while on battery backup power. The slim profile and full-motion power cord allows for discrete installation and keyhole mounting slots allow for wall-mount applications as well.
With a $100,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower’s commitment to the quality of the SL700U.
Product Features
- Battery Backup Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
- Surge Protection Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
- USB Charge Ports Rapidly charge and power USB devices such as tablets (including iPad), smartphones, MP3 players, and other mobile accessories.
- Widely Spaced Outlets Accommodates large transformer-based plugs without compromising the access of other outlets.
- Power Panel® Personal Software Provides a user-friendly dashboard interface for controlling and monitoring the UPS.
- Green Power UPS™ High-Efficiency Design Reduces power consumption by utilizing a compact charger and power inverter to create an ultra-efficient backup power system for home and office use.
- ENERGY STAR® This model is an ENERGY STAR® qualified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.
- Simulated Sine Wave Output Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output.
- Three-Year Warranty CyberPower will replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
- Connected Equipment Guarantee CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
What's In The Box
UPS System, User Manual, USB A+B Type Cable
| General | |
|---|---|
| Energy Saving | Green Power UPS™ High-Efficiency |
| Energy Star Certified | Yes |
| UPS Topology | Standby |
| Battery | |
| Battery Quantity | 1 |
| Battery Size | 12 V / 5.5 Ah |
| Battery Type | Sealed Lead-Acid Battery |
| Runtime at Full Load | 2 min |
| Runtime at Half Load | 9 min |
| Typical Recharge Time | 8 Hours |
| User Replaceable Battery | No |
| Input | |
| Circuit Breaker | 15 A |
| Cord Length | 5 ft (1.5 m) |
| Input Frequency Range | 47 Hz – 53 Hz 57 Hz – 63 Hz |
| Input Plug Type | NEMA 5-15P |
| Nominal Input Voltage | 120 VAC |
| Plug Style | Right Angle – 45° Offset |
| Output | |
| On AC WaveForm | Sine Wave |
| On Battery Frequency | 50/60 Hz ± 1% (auto-sensing) |
| On Battery Voltage | 120 VAC ± 5% |
| On Battery Waveform | Simulated Sine Wave |
| Outlet Type | 8 – NEMA 5-15R |
| Outlets – Battery & Surge Protected | 5 |
| Outlets – Surge-Only Protected | 3 |
| Outlets – Total | 8 |
| Outlets – Widely Spaced | 2 |
| Output Power Factor | 0.5 |
| Overload Protection | Internal Circuitry Limiting Circuit Breaker Protected |
| Typical Transfer Time | 8 ms |
| USB Charge Port | Yes |
| USB Charge Port Amperage | 2.4 Amps (Shared) |
| USB Charge Port Quantity | 2 |
| USB Charge Port Standard | Type A |
| USB Charge Port Type | 2 Type A |
| USB Charge Port Voltage | 5 VDC |
| VA | 700 VA |
| Watts | 370 W |
| Surge Protection & Filtering | |
| EMI/RFI Filtration | Yes |
| Surge Suppression (Joules) | 890 J |
| Management & Communications | |
| Audible Alarms | Battery Mode Low Battery Overload Fault |
| HID Compliant USB Port | Yes |
| LED Indicators | Power On Wiring Fault |
| Management Cable | USB Cable |
| Software (Free Download) | PowerPanel® Personal |
| Physical | |
| Color | Black |
| Form Factor | Compact |
| Material of Construction | Plastic |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 32.41 x 13.72 x 7.01 (cm) |
| Physical Dimensions – (WxHxD) (in) | 12.76 x 5.4 x 2.76 (in) |
| Physical Dimensions – (WxHxD) (mm) | 324 x 137 x 70 (mm) |
| Physical Weight (kg) | 3.07 |
| Physical Weight (lb) | 6.77 |
