Description
Product Overview

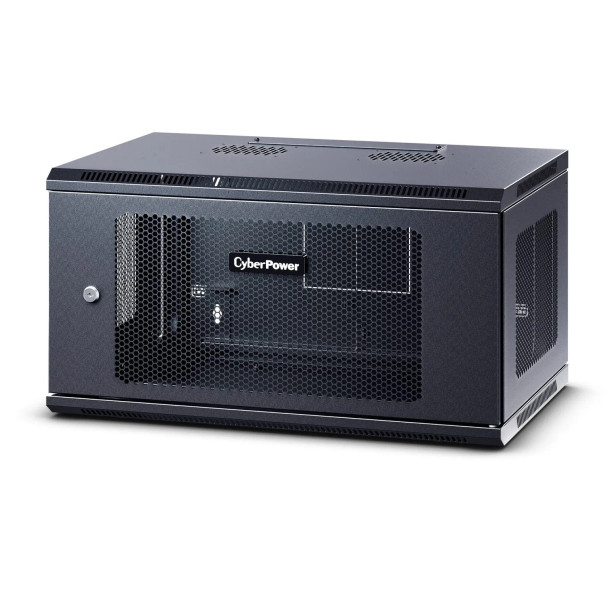

The CR6U61003 is designed for use in network closets, classrooms, and other locations. This wall mount rack houses network switches and patch panels up to 20.3" deep. It includes convenient top panel cable access openings, perforated front door and side panels for efficient airflow, adjustable rack angles, and square and threaded mounting holes. The CR6U61003 ships fully assembled for quick deployment and can be customized with compatible accessories. It is covered by a 5-year limited warranty.
Product Features
- Perforated Front Door and Side Panels Provides ventilation for small servers and networking equipment.
- Reversible Door Front door has spring loaded hinges and can be easily moved to the opposite side.
- Quick Release Side Panels Lockable side panels can be removed easily for quick access to equipment and cabling.
- Cable Access Openings Slots in the bottom and top provide convenient cable routing to and from the enclosure.
- Rack Mounting Compatibility The CR6U61003 is compatible with all EIA-310 compliant 19″ equipment.
- Adjustable Rack Angles Vertical rack angles can be adjusted in 3/4″ increments for mounting depth requirements up to 20.3″. U rack units are numbered front and back for easy equipment installation.
- Square and Threaded Mounting Holes Vertical rack angles have both square and threaded mounting holes, and can be turned easily to change mounting type.
- Designed for Stability A high-precision frame design and heavy gauge mounting rails provide a load rating of 132 lbs.
- Integrated Electrical Grounding Grounding connections are located on the frame for facility ground.
What's In The Box
Wall Mount Enclosure, Keys, Mounting Hardware, User Manual
| Output | |
|---|---|
| USB Charge Port | No |
| Physical | |
| Cable Access Opening Dimensions | 9.8 x 2.2 in (249 x 56 m) |
| Color | Black |
| Door Type | Hex Perforated Metal Door |
| Factory Default Mounting Depth | 17.2 ft (436.9 mm) |
| Material of Construction | Metal |
| Max. Mounting Depth (in) | 20.3 |
| Max. Mounting Depth (mm) | 516 |
| Min. Mounting Depth (in) | 1.9 |
| Min. Mounting Depth (mm) | 47 |
| Rack Angle Mounting Hole Type | Square Mounting Holes #12-24 Mounting Holes |
| Rack Height | 6U |
| Weight Capacity – stationary load (kg) | 60 |
| Weight Capacity – stationary load (lbs) | 132.3 |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 59.94 x 32.0 x 59.94 (cm) |
| Physical Dimensions – (WxHxD) (in) | 23.6 x 12.6 x 23.6 (in) |
| Physical Dimensions – (WxHxD) (mm) | 599 x 320 x 599 (mm) |
| Physical Weight (kg) | 13.47 |
| Physical Weight (lb) | 29.7 |
