Description
Product Overview

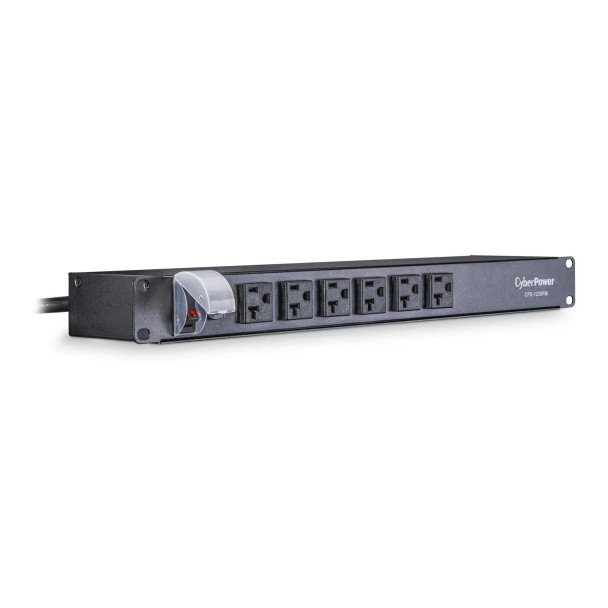

The CyberPower CPS1220RM, a 12-outlet (6 front, 6 rear) rackmount power distribution unit (PDU), provides 100 – 125 V 20A output. It distributes power to 10 NEMA 5-20R receptacles from a single NEMA 5-20P input with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the CPS1220RM has durable metal housing and a 15-foot AC power cord. It can be mounted horizontally, includes a cord retention tray, and is ETL/RoHS certified. A three-year warranty covers the CPS1220RM for three years for as long as you own the product.
Product Features
- Power Distribution Delivers AC power to servers, equipment, and connected devices via a power distribution unit.
- Network-Grade Plugs and Outlets Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.
- Long Input Power Cord Reaches distant power sources, allowing the PDU to be placed where it’s needed.
- Cord Retention Tray Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.
- Durable Metal Housing Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.
- Three-Year Limited Warranty Covers the CPS1220RM for three years for as long as you own the product.
What's In The Box
PDU, User Manual
Input | |
---|---|
Circuit Breaker | 20 A |
Cord Length | 15 ft (4.6 m) |
Input Plug Type | NEMA 5-20P |
Maximum Input Current | 20A |
Nominal Input Voltage | 120 VAC |
Plug Style | Straight |
Switch | Lighted On/Off |
Output | |
Nominal Output Voltage | 120 – 120 VAC |
Outlet Type | 12 – NEMA 5-20R |
Outlets – Front | 6 |
Outlets – Rear | 6 |
Outlets – Total | 12 |
Overload Protection | 20A |
USB Charge Port | No |
Surge Protection & Filtering | |
Clamping Voltage | 800V (H-N) |
Physical | |
Color | Black |
Form Factors Supported | 1U Rackmount |
Material of Construction | Metal |
Rack Height | 1U |
Dimensions | |
Physical Dimensions – (WxHxD) (cm) | 43.82 x 4.45 x 12.07 (cm) |
Physical Dimensions – (WxHxD) (in) | 17.25 x 1.75 x 4.75 (in) |
Physical Dimensions – (WxHxD) (mm) | 438 x 44 x 121 (mm) |
Physical Weight (kg) | 2.72 |
Physical Weight (lb) | 6 |
