Description
Product Overview
A mini-tower UPS with line interactive topology, the CyberPower PFC Sinewave CP850PFCLCD provides battery backup (using sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems requiring active PFC power source compatibility.

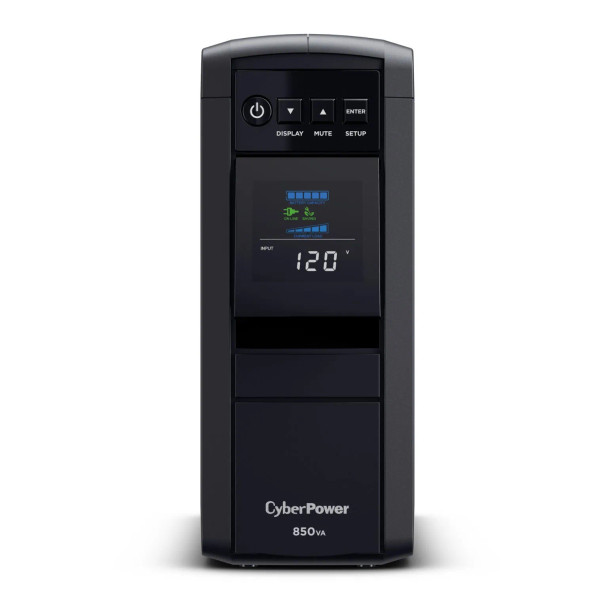

The CP850PFCLCD features an advanced multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. The screen tilts for easy viewing when the UPS is placed in a low position such as under a desk.
The CP850PFCLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP850PFCLCD comes with a three-year warranty (including coverage of batteries) and a $250,000 Connected Equipment Guarantee.
Product Features
- Battery BackupSupplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
- Surge ProtectionDiverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
- Sine Wave OutputThe UPS generates energy that is identical to, or cleaner than the utility company’s power grid. Benefits include low total harmonic distortion, minimal electrical noise, and optimal line clarity.
- Multifunction LCD Panel with Color DisplayDisplays immediate, detailed information on the UPS battery and power conditions. The color display quickly alerts users to potential problems before they can affect critical equipment and cause downtime. Screen tilts up to 22 degrees for easy viewing.
- Automatic Voltage Regulation (AVR)AVR increases the AC power and maintains a safe voltage level without switching to battery mode and conserving battery life.
- Data Line ProtectionPrevents power surges that travel through Ethernet lines from causing damage to electronics.
- Widely Spaced Outlet(s)The widely-spaced outlet allow you to conveniently add transformer-sized plugs without blocking other outlets.
- Line Interactive TopologyExists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
- ENERGY STARThis model is an ENERGY STAR® certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.
- Green Power UPS™ Bypass Design A patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.
- Ultra Quiet Design Minimizes noise during operation for a quieter work environment.
- Power Panel® Personal Software Provides a user-friendly dashboard interface for controlling and monitoring the UPS.
- Three-Year Warranty CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
- Connected Equipment Guarantee CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
What's In The Box
UPS System, User Manual, USB A+B Type Cable, Function Setup Guide
General | |
---|---|
Active PFC Compatible | Yes |
Energy Saving | Green Power UPS™ Bypass Technology |
Energy Star Certified | Yes |
UPS Topology | Line Interactive |
Battery | |
Battery Quantity | 1 |
Battery Size | 12 V / 9 Ah |
Battery Type | Sealed Lead-Acid Battery |
Hot Swappable | No |
Replacement Battery Cartridge | RB1280A (for serial numbers beginning with CQD) RB1290 (for serial numbers beginning with CX2) RB1290 RB1280A |
Replacement Battery Cartridge Quantity | 1 |
Runtime at Full Load | 3 min |
Runtime at Half Load | 9 min |
Typical Recharge Time | 8 Hours |
User Replaceable Battery | Yes |
Input | |
Circuit Breaker | 20 A |
Cord Length | 5 ft (1.5 m) |
Input Frequency Range | 57 Hz – 63 Hz |
Input Plug Type | NEMA 5-15P |
Input Voltage Range | 88 VAC – 144 VAC |
Nominal Input Voltage | 120 VAC |
Plug Style | Right Angle – 45° Offset |
Output | |
Automatic Voltage Regulation | Single Boost |
On AC WaveForm | Sine Wave |
On Battery Frequency | 60 Hz ± 1% |
On Battery Voltage | 120 VAC ± 5% |
On Battery Waveform | Sine Wave |
Outlet Type | 10 – NEMA 5-15R |
Outlets – Battery & Surge Protected | 5 |
Outlets – Surge-Only Protected | 5 |
Outlets – Total | 10 |
Output Power Factor | 0.6 |
Overload Protection | Internal Circuitry Limiting Circuit Breaker Protected |
Typical Transfer Time | 4 ms |
USB Charge Port | No |
Under/Over-Voltage Correction | +11.5% |
VA | 850 VA |
Watts | 510 W |
Surge Protection & Filtering | |
EMI/RFI Filtration | Yes |
Network Protection RJ45 | 1-in / 1-Out (10/100/1000) + PoE Compatible |
Surge Suppression (Joules) | 1150 J |
Management & Communications | |
Audible Alarms | Battery Mode Low Battery Overload Fault |
HID Compliant USB Port | Yes |
LCD | Multifunction LCD |
LED Indicators | Power On Wiring Fault |
Management Cable | USB Cable |
Serial Port | 1 Dry Contact |
Software (Free Download) | PowerPanel® Personal |
Physical | |
Color | Black |
Form Factor | Mini-Tower |
Material of Construction | Plastic |
Dimensions | |
Physical Dimensions – (WxHxD) (cm) | 9.91 x 24.64 x 25.91 (cm) |
Physical Dimensions – (WxHxD) (in) | 3.9 x 9.7 x 10.2 (in) |
Physical Dimensions – (WxHxD) (mm) | 99 x 246 x 259 (mm) |
Physical Weight (kg) | 6.76 |
Physical Weight (lb) | 14.9 |
