Cyber Power CP685AVRG UPS Solutions

Product Overview

The CyberPower CP685AVRG uninterruptible power supply (UPS) system provides battery backup and surge protection for lightning-induced surges and other power events that can damage electronic equipment. This UPS, with line-interactive topology, uses simulated sine wave output to deliver battery backup to power connected electronics during a utility power failure. The unit has enough runtime to perform a graceful shutdown to protect against the loss of data and damage to valuable desktop computers, workstations, networking devices, and home entertainment systems.

The CP685AVRG uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power. AVR is essential in areas where power fluctuations occur frequently, and it helps to extend the unit’s battery life. CyberPower designed the CP685AVRG to minimize noise for a quieter work environment and run efficiently to reduce power consumption.

With a $125,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower’s commitment to the quality of this battery backup with surge protection.

Product Features

• Battery Backup

  Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.

• Surge Protection

  Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.

• Line Interactive Topology

  Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.

• Automatic Voltage Regulation (AVR)

  Provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations.

• Simulated Sine Wave Output

  Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output.

• Green Power UPS Bypass

  Is a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.

• Ultra Quiet Design

  Minimizes noise during operation for a quieter work environment.

• Transformer-Spaced Outlets

  Widely spaced outlets accommodate transformer-based plugs without compromising the access of other outlets.

• Power Panel® Personal Software

  Provides a user-friendly dashboard interface for controlling and monitoring the UPS.

• ENERGY STAR

  This model is an ENERGY STAR^® certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.

• Three-Year Warranty

  CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.

• Connected Equipment Guarantee

  CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.

  What's In The Box

  UPS unit, User Manual, USB device cable, Power Panel® Personal software CD or Free download card

  General
  Energy Saving	GreenPower UPS™ Bypass Technology
  Energy Star Certified	Yes
  UPS Topology	Line Interactive
  Battery
  Battery Quantity	1
  Battery Size	12 V / 7 Ah
  Battery Type	Sealed Lead-Acid Battery
  Hot Swappable	No
  Replacement Battery Cartridge	RB1270B (for serial numbers that with "CXA") RB1280 (for serial numbers that begin with "BGP" or "BFA") RB1280 RB1270B
  Replacement Battery Cartridge Quantity	1
  Runtime at Full Load	2 min
  Runtime at Half Load	11 min
  Typical Recharge Time	8 Hours
  User Replaceable Battery	Yes
  Input
  Circuit Breaker	15 A
  Cord Length	6 ft (1.8 m)
  Input Frequency Range	57 Hz – 63 Hz
  Input Plug Type	NEMA 5-15P
  Input Voltage Range	90 VAC – 140 VAC
  Nominal Input Voltage	120 VAC
  Output
  Automatic Voltage Regulation	Single Boost
  On AC WaveForm	Sine Wave
  On Battery Frequency	60 Hz ± 1%
  On Battery Voltage	120 VAC ± 5%
  On Battery Waveform	Simulated Sine Wave
  Outlet Type	8 – NEMA 5-15R
  Outlets – Battery & Surge Protected	4
  Outlets – Surge-Only Protected	4
  Outlets – Total	8
  Outlets – Widely Spaced	4
  Output Power Factor	0.6
  Overload Protection	Internal Circuitry Limiting
  Typical Transfer Time	4 ms
  USB Charge Port	No
  VA	685 VA
  Watts	390 W
  Surge Protection & Filtering
  Coax Protection RG6	None
  EMI/RFI Filtration	Yes
  Surge Suppression (Joules)	1030 J
  Management & Communications
  Audible Alarms	Battery Mode Low Battery Overload
  HID Compliant USB Port	Yes
  LED Indicators	Power On Wiring Fault
  Management Cable	USB Cable Serial Cable
  Serial Port	1 Serial
  Software (Free Download)	PowerPanel® Personal
  Physical
  Color	Black
  Form Factor	Compact
  Keyhole Mounting Slots	Yes
  Material of Construction	Plastic

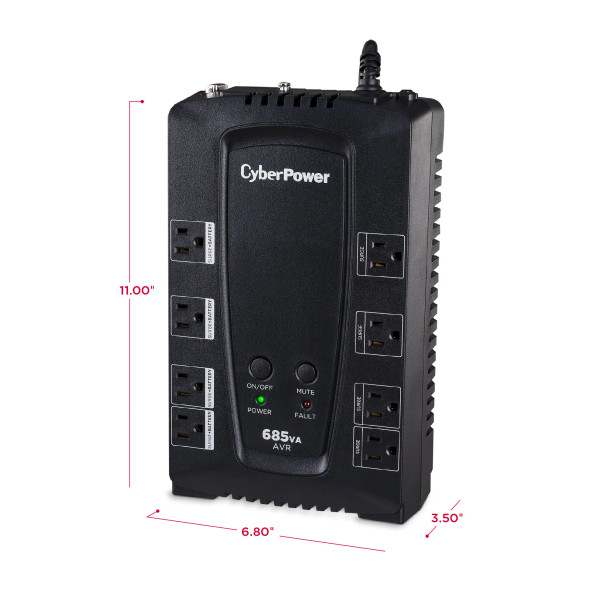

  Dimensions
  Physical Dimensions – (WxHxD) (cm)	27.94 x 17.27 x 8.89 (cm)
  Physical Dimensions – (WxHxD) (in)	11 x 6.8 x 3.5 (in)
  Physical Dimensions – (WxHxD) (mm)	279 x 173 x 89 (mm)
  Physical Weight (kg)	5.27
  Physical Weight (lb)	11.62
