Description
Product Overview

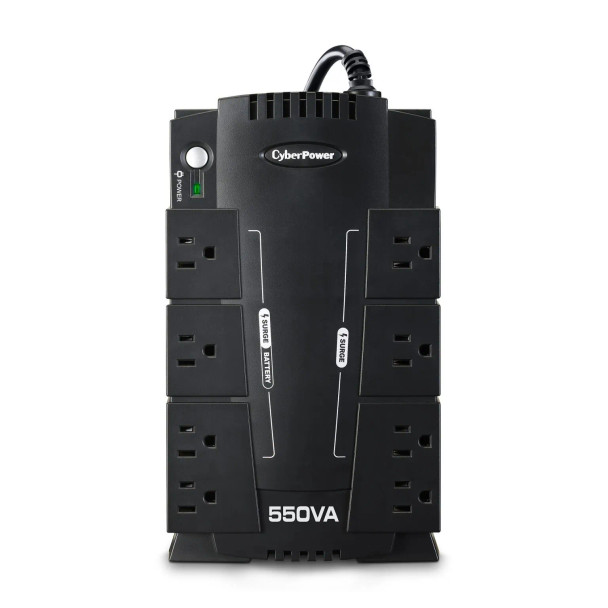

A compact UPS with standby topology, the CyberPower Standby CP550SLG provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. During power interruptions, the CP550SLG offers reliable power protection and battery backup. The CP550SLG comes with a three-year warranty and a $100,000 Connected Equipment Guarantee.
Product Features
- Battery Backup Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
- Surge Protection Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
- Data Line Protection Prevents power surges that travel through telephone lines from causing damage to electronics.
- Standby Topology Ensures that when incoming power drops below or surges above safe voltage levels, the UPS switches to DC battery power and then inverts to AC power to run connected equipment.
- Simulated Sine Wave Output Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output.
- Green Power UPS™ High-Efficiency Design Reduces power consumption by utilizing a compact charger and power inverter to create an ultra-efficient backup power system for home and office use.
- Ultra Quiet Design Minimizes noise during operation for a quieter work environment.
- Transformer-Spaced Outlets Accommodate large transformer-based plugs without compromising the access of other outlets.
- Power Panel® Personal Edition Software Provides a user-friendly dashboard interface for controlling and monitoring the UPS. Free software download available. See the Resources tab.
- Three-Year Warranty CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
- Connected Equipment Guarantee CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
What's In The Box
UPS System, User Manual, USB A+B Type Cable
General | |
---|---|
Energy Saving | GreenPower UPS™ High-Efficiency |
UPS Topology | Standby |
Battery | |
Battery Quantity | 1 |
Battery Size | 12 V / 5.5 Ah |
Battery Type | Sealed Lead-Acid Battery |
Runtime at Full Load | 2 min |
Runtime at Half Load | 8 min |
Typical Recharge Time | 8 Hours |
User Replaceable Battery | No |
Input | |
Circuit Breaker | 10 A |
Cord Length | 5 ft (1.5 m) |
Input Frequency Range | 47 Hz – 63 Hz |
Input Plug Type | NEMA 5-15P |
Nominal Input Voltage | 120 VAC |
Plug Style | Right Angle – 45° Offset |
Output | |
On AC WaveForm | Sine Wave |
On Battery Frequency | 50/60 Hz ± 1% |
On Battery Voltage | 120 VAC ± 5% |
On Battery Waveform | Simulated Sine Wave |
Outlet Type | 8 – NEMA 5-15R |
Outlets – Battery & Surge Protected | 4 |
Outlets – Surge-Only Protected | 4 |
Outlets – Total | 8 |
Outlets – Widely Spaced | 4 |
Output Power Factor | 0.6 |
Overload Protection | Internal Circuitry Limiting Circuit Breaker Protected |
Typical Transfer Time | 4 ms |
USB Charge Port | No |
VA | 550 VA |
Watts | 330 W |
Surge Protection & Filtering | |
EMI/RFI Filtration | Yes |
Phone Protection RJ11 | 1-In / 2-Out |
Surge Suppression (Joules) | 890 J |
Management & Communications | |
Audible Alarms | Battery Mode Low Battery Overload |
HID Compliant USB Port | Yes |
LED Indicators | Power On Wiring Fault |
Management Cable | USB Cable |
Software (Free Download) | PowerPanel® Personal |
Physical | |
Color | Black |
Form Factor | Compact |
Keyhole Mounting Slots | Yes |
Material of Construction | Plastic |
Dimensions | |
Physical Dimensions – (WxHxD) (cm) | 24.89 x 14.73 x 8.38 (cm) |
Physical Dimensions – (WxHxD) (in) | 9.8 x 5.8 x 3.3 (in) |
Physical Dimensions – (WxHxD) (mm) | 249 x 147 x 84 (mm) |
Physical Weight (kg) | 3.4 |
Physical Weight (lb) | 7.5 |
