Description
Product Overview

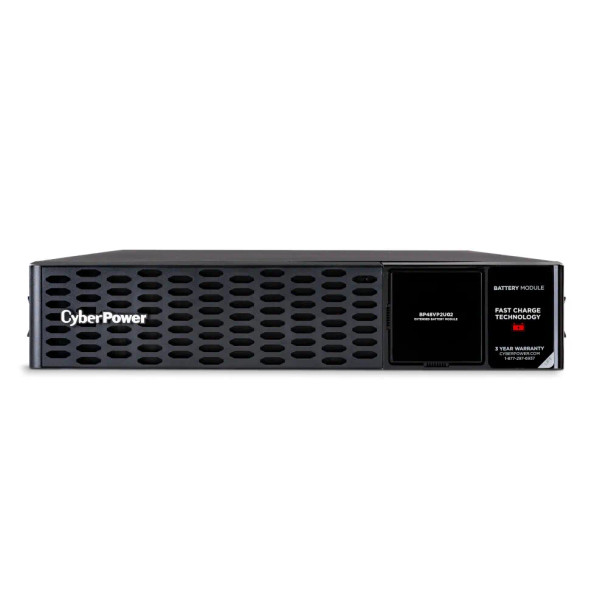

The CyberPower BP48VP2U02 is a rack/tower convertible Extended Battery Module (EBM) that extends battery runtimes during power outages and is designed for the following UPS systems: PR1000LCDRTXL2UA, PR1500LCDRTXL2U, PR1500RTXL2U, PR1500RTXL2UC, PR1500RTXL2UCN, PR2000RTXL2U, PR2000RTXL2UC, PR2000RTXL2UCN, PR2200LCDRTXL2U, PR2200RTXL2U, PR2200RTXL2UC, PR2200RTXL2UCN, PR3000LCDRTXL2U, PR3000RTXL2U, PR3000RTXL2UC, PR3000RTXL2UCN, OR1500LCDRTXL2U, and OR2200LCDRTXL2U.
This EBM takes 2U of rack space and can be installed in either a rack or tower configuration to match the UPS form factor. Battery equalization technology improves battery life, and toolless battery panel access makes battery replacement fast and simple.
With a three-year lifetime limited warranty, you can trust CyberPower’s commitment to the quality of the BP48VP2U02.
Product Features
- Extended Battery Module Expands runtime and quickly restores full backup power with Fast Charge Technology.
- Battery Equalization Technology Battery Equalization is an advanced charging process that maintains the voltages of the batteries at the same level to increase battery life.
- Fast Charge Technology Allows UPS batteries to return to full capacity more rapidly by using a built-in charger inside of each UPS or EBM.
- Toolless Battery Panel Access Makes battery replacement fast and simple. The faceplate features side latches for easy removal, and captive screws can be loosened by hand to open the battery cover.
- Hot-Swappable Batteries Eliminates power-related downtime and ensures maximum power availability. All potential UPS maintenance, including complete power module exchange, can be performed without powering down connected equipment.
- Rack/Tower Configuration Allows for horizontal rack or vertical tower installation.
- Three-Year Warranty Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.
- What’s in the box Extended Battery Module, Faceplate, User Manual, Rack Mounting Kit, Tower Mounting Kit, BM Cable, and (2) IEC C13-C14 Cables
What's In The Box
Extended Battery Module, Rail Kit CP2Rail02
General | |
---|---|
Amperage | 70 A |
DC Voltage | 48 VDC |
Battery | |
Battery Quantity | 8 |
Battery Size | 12 V / 9 Ah |
Battery Type | Sealed Lead-Acid Battery |
Built-in Charger | Yes |
Hot Swappable | Yes |
Replacement Battery Cartridge | RB1290X4J |
Replacement Battery Cartridge Quantity | 2 |
Typical Recharge Time | 6 Hours |
User Replaceable Battery | Yes |
Input | |
Circuit Breaker | 70 A |
Input Frequency Range | 50 Hz – 60 Hz |
Input Plug Type | IEC-320 C14 |
Input Voltage Range | 100 VAC – 240 VAC |
Nominal Input Voltage | 120 VAC |
Output | |
USB Charge Port | No |
Physical | |
Color | Black |
Rack Height | 2U |
Dimensions | |
Physical Dimensions – (WxHxD) (cm) | 43.43 x 8.64 x 50.04 (cm) |
Physical Dimensions – (WxHxD) (in) | 17.1 x 3.4 x 19.7 (in) |
Physical Dimensions – (WxHxD) (mm) | 434 x 86 x 500 (mm) |
Physical Weight (kg) | 30.03 |
Physical Weight (lb) | 66.2 |
