Description
Product Overview

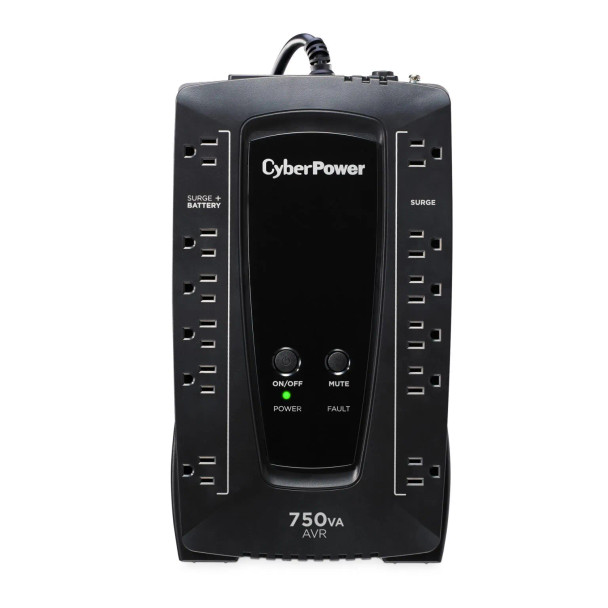

A compact UPS with line interactive topology, the CyberPower AVRG750U provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The AVRG750U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The AVRG750U comes with a three-year warranty (including coverage of batteries) and a $150,000 Connected Equipment Guarantee.
Product Features
- Battery Backup Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
- Surge Protection Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
- Data Line Protection Prevents power surges that travel through telephone lines from causing damage to electronics.
- Line Interactive Topology Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
- Automatic Voltage Regulation (AVR)Provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations.
- Simulated Sine Wave Output Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output.
- Green Power UPS™ Bypass Design Is a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.
- Ultra Quiet Design Minimizes noise during operation for a quieter work environment.
- Power Panel® Personal Edition Software Provides a user-friendly dashboard interface for controlling and monitoring the UPS. Free software download available here.
- Energy Star This model is an ENERGY STAR® certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.
- Three-Year Warranty CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
- Connected Equipment Guarantee CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
What's In The Box
UPS System, User Manual, USB A+B Type Cable, Warranty Registration Card, Power Panel® Personal Download Card
General | |
---|---|
Energy Saving | Green Power UPS™ Bypass Technology |
Energy Star Certified | Yes |
UPS Topology | Line Interactive |
Battery | |
Battery Quantity | 1 |
Battery Size | 12 V / 7 Ah |
Battery Type | Sealed Lead-Acid Battery |
Hot Swappable | No |
Replacement Battery Cartridge | RB1270B |
Replacement Battery Cartridge Quantity | 1 |
Runtime at Full Load | 2.5 min |
Runtime at Half Load | 7.6 min |
Typical Recharge Time | 8 Hours |
User Replaceable Battery | Yes |
Input | |
Circuit Breaker | 15 A |
Cord Length | 5 ft (1.5 m) |
Input Frequency Range | 57 Hz – 63 Hz |
Input Plug Type | NEMA 5-15P |
Nominal Input Voltage | 120 VAC |
Plug Style | Right Angle – 45° Offset |
Output | |
Automatic Voltage Regulation | Single Boost Single Buck |
On AC WaveForm | Sine Wave |
On Battery Frequency | 60 Hz ± 1% |
On Battery Voltage | 120 VAC ± 5% |
On Battery Waveform | Simulated Sine Wave |
Outlet Type | 12 – NEMA 5-15R |
Outlets – Battery & Surge Protected | 6 |
Outlets – Surge-Only Protected | 6 |
Outlets – Total | 12 |
Output Power Factor | 0.6 |
Overload Protection | Internal Circuitry Limiting Circuit Breaker Protected |
Typical Transfer Time | 4 ms |
USB Charge Port | No |
VA | 750 VA |
Watts | 450 W |
Surge Protection & Filtering | |
EMI/RFI Filtration | Yes |
Phone Protection RJ11 | 1-In / 2-Out |
Surge Suppression (Joules) | 1030 J |
Management & Communications | |
Audible Alarms | Battery Mode Low Battery Overload Fault |
HID Compliant USB Port | Yes |
LED Indicators | Power On Wiring Fault |
Management Cable | USB Cable |
Software (Free Download) | PowerPanel® Personal |
Physical | |
Color | Black |
Form Factor | Compact |
Keyhole Mounting Slots | Yes |
Material of Construction | Plastic |
Dimensions | |
Physical Dimensions – (WxHxD) (cm) | 30.99 x 17.78 x 8.89 (cm) |
Physical Dimensions – (WxHxD) (in) | 12.2 x 7 x 3.5 (in) |
Physical Dimensions – (WxHxD) (mm) | 310 x 178 x 89 (mm) |
Physical Weight (kg) | 6.1 |
Physical Weight (lb) | 13.44 |
