Description
Product Overview

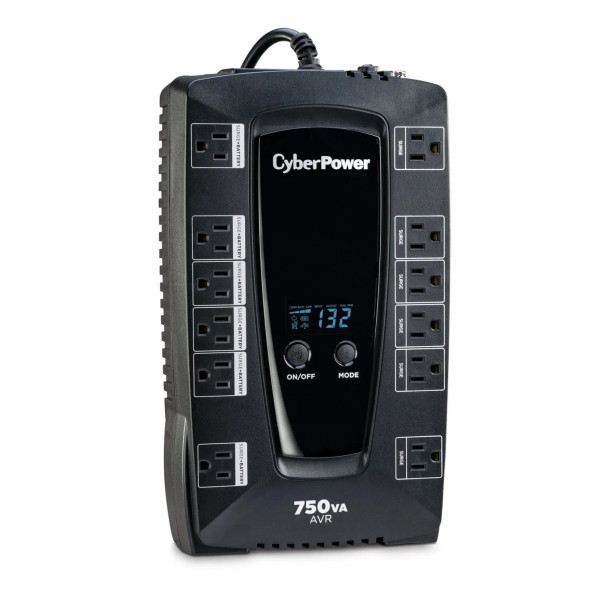

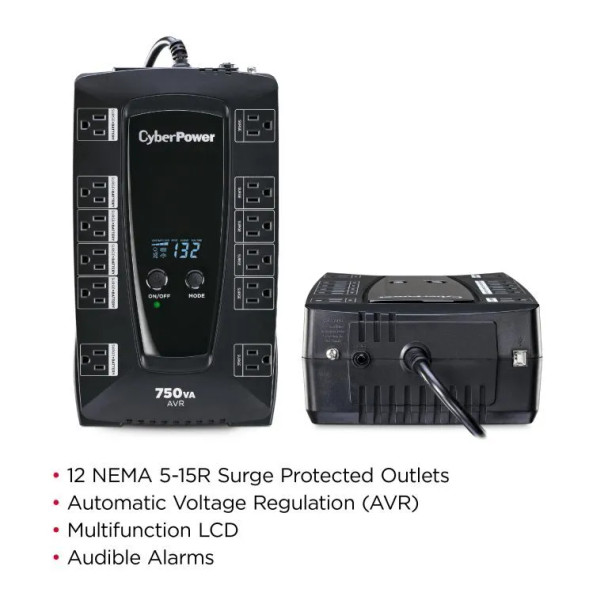

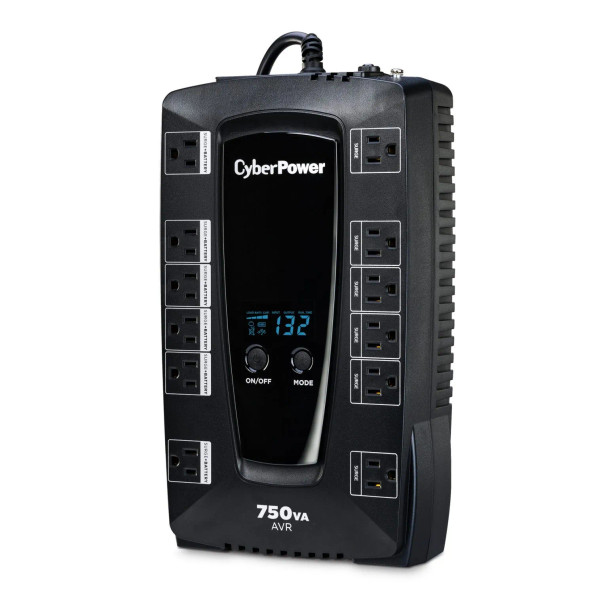

A compact UPS with line interactive topology, the CyberPower AVRG750LCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The AVRG750LCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The AVRG750LCD comes with a three-year warranty (including coverage of batteries) and a $150,000 Connected Equipment Guarantee.
Product Features
- Battery Backup
Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
- Surge Protection
Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
- Data Line Protection
Prevents power surges that travel through telephone lines from causing damage to electronics.
- Line Interactive Topology
Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
- Automatic Voltage Regulation (AVR)
Provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations.
- Simulated Sine Wave Output
Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output.
- Green Power UPS™ Bypass Design
Is a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.
- Multifunction LCD Panel
Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.
- Ultra Quiet Design
Minimizes noise during operation for a quieter work environment.
- Power Panel® Personal Software
Provides a user-friendly dashboard interface for controlling and monitoring the UPS.
- Three-Year Warranty
CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
- Connected Equipment Guarantee
CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
What's In The Box
UPS System, User Manual, USB A+B Type Cable, Warranty Registration Card
General | |
---|---|
Energy Saving | GreenPower UPS™ Bypass Technology |
UPS Topology | Line Interactive |
Battery | |
Battery Quantity | 1 |
Battery Size | 12 V / 7 Ah |
Battery Type | Sealed Lead-Acid Battery |
Hot Swappable | No |
Replacement Battery Cartridge | RB1270B |
Replacement Battery Cartridge Quantity | 1 |
Runtime at Full Load | 2.5 min |
Runtime at Half Load | 7.6 min |
Typical Recharge Time | 8 Hours |
User Replaceable Battery | Yes |
Input | |
Circuit Breaker | 15 A |
Cord Length | 5 ft (1.5 m) |
Input Frequency Range | 57 Hz – 63 Hz |
Input Plug Type | NEMA 5-15P |
Input Voltage Range | 90 VAC – 148 VAC |
Nominal Input Voltage | 120 VAC |
Plug Style | Right Angle – 45° Offset |
Output | |
Automatic Voltage Regulation | Single Boost Single Buck |
On AC WaveForm | Sine Wave |
On Battery Frequency | 60 Hz ± 1% |
On Battery Voltage | 120 VAC ± 5% |
On Battery Waveform | Simulated Sine Wave |
Outlet Type | 12 – NEMA 5-15R |
Outlets – Battery & Surge Protected | 6 |
Outlets – Surge-Only Protected | 6 |
Outlets – Total | 12 |
Output Power Factor | 0.6 |
Overload Protection | Internal Circuitry Limiting Circuit Breaker Protected |
Typical Transfer Time | 4 ms |
USB Charge Port | No |
VA | 750 VA |
Watts | 450 W |
Surge Protection & Filtering | |
EMI/RFI Filtration | Yes |
Phone Protection RJ11 | 1-In / 2-Out |
Surge Suppression (Joules) | 1030 J |
Management & Communications | |
Audible Alarms | Battery Mode Low Battery Overload Fault |
HID Compliant USB Port | Yes |
LCD | Multifunction LCD |
LED Indicators | Power On Wiring Fault |
Management Cable | USB Cable |
Software (Free Download) | PowerPanel® Personal |
Physical | |
Color | Black |
Form Factor | Compact |
Keyhole Mounting Slots | Yes |
Material of Construction | Plastic |
Dimensions | |
Physical Dimensions – (WxHxD) (cm) | 30.99 x 17.78 x 8.89 (cm) |
Physical Dimensions – (WxHxD) (in) | 12.2 x 7 x 3.5 (in) |
Physical Dimensions – (WxHxD) (mm) | 310 x 178 x 89 (mm) |
Physical Weight (kg) | 5.62 |
Physical Weight (lb) | 12.4 |
