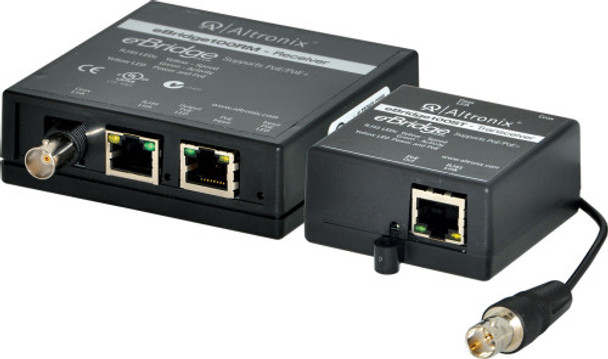

Altronix EBRIDGE100STR EoC Single Port Adapter Kit, 100Mbps, Passes PoE/PoE+, Includes Receiver & Small Transceiver

eBridge100STR is a versatile solution Ethernet adapter/media converter kit which transmits data at 100Mbps full duplex and power over Coax cable in a PoE+ compliant format. The eBridge100RM is powered via a PoE midspan, such as the Altronix Netway series, or by an endspan. The receiver passes the PoE(+) compliant power over cable to the eBridge100ST transceiver which in turn passes this power to an enabled IP Camera/device. These plug and play units facilitate cost effective solutions for IP devices that need to be installed at distances greater than 100m. They provide a simple way to replace legacy analog products with new IP devices over existing coax.

• Input eBridge100RM

  • Powered by midspan or endspan.
  • PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W).

• Ethernet

  • Connectivity: RJ45, auto-crossover.
  • Wire type: 4-pair CAT5.
  • Distance: up to 100m.
  • Speed: 10/100BaseT, half/full duplex, auto negotiation.
  • PoE compliant to IEEE 802.3af (15W) and
  • PoE+ compliant to IEEE 802.3at (30W)
  • Delivered to camera by eBridge100ST.
  • Power provided by eBridge100RM to eBridge100ST by PoE protocol.

• Coax Link

  • Distance: Coax 300m for power delivery.
  • Throughput is rated to pass 100Mbps of data at distances up to 500m.
  • Connectivity: BNC, RG-59/U or similar.

• LED Indicators

  • eBridge100RM:

    • Green LED: PoE ON.
    • Yellow LED: Power ON.

•

  • eBridge100RM and eBridge100ST:

    • Yellow and Green LED (RJ45): IP Link status, 10/100Base-T/active.

•

  • eBridge100ST:

    • Blue LED: Coax link connection.
    • Green LED: PoE ON.

• Functions

  • Auto detection and protection of legacy non-PoE cameras/devices.

• Operating Temperature

  • eBridge100RM:

    • - 20° C to 49° C ( - 4° F to 120.2° F).

•

  • eBridge100ST:

    • For 15W: - 40° C to 75° C ( - 40° F to 167° F).
    • For 30W: - 40° C to 60° C ( - 40° F to 140° F).

• Storage Temperature

  • - 40° C to 75° C (-40° F to 167° F).
  • Humidity: 20 to 85%, non-condensing.

• Operating Altitude

  • - 304.8 to 2,000m (-1000 to 6,561.679 ft.).
